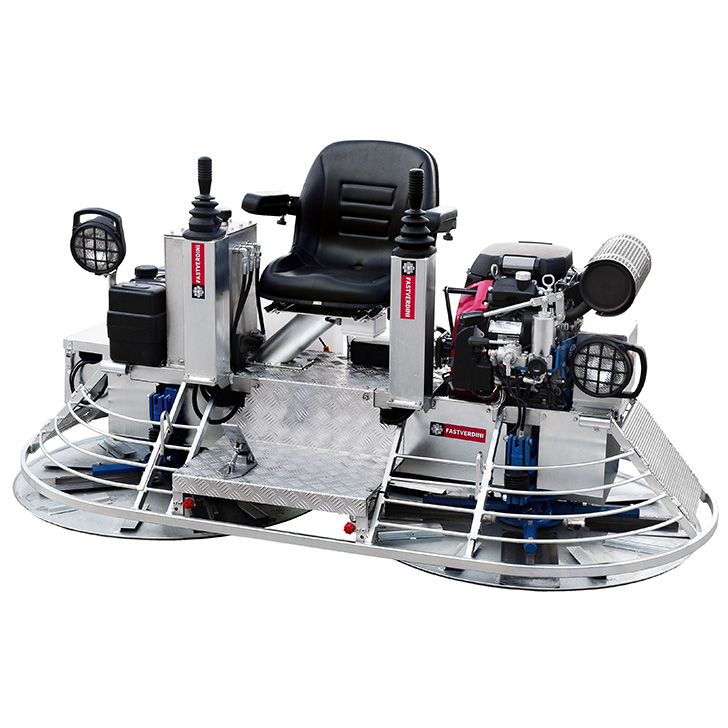

DUPLEX 1000/H – NO OVERLAP

CODE: PFDUPLH1 Categories: , ,

HYDRAULIC STEERING wtih double joy-stick for immediate machine control and precise manoeuvrability. Patented HYDRAULIC BLADE PITCH SYSTEM TO ADJUST BOTH ROTORS SIMULTANEOUSLY – Two halogen lights – Opening grids from both sides – Galvanised casing to protect lower rotary components – 10 l water tank with pump and electric button – Special galvanized steel case for battery – 11 l fuel tank in special rustproof material – Oversized gearboxes housed inside a steel frame – Working hours display

Model

DUPLEX 1000/H

Rotors diameter mm

1000

Blades N°

8

Finishing blades mm

357 x 152

Floating blades mm

360 x 250

Floating pan mm

1000

Blade speed rpm

134

Engine Honda GX690 petrol
Power kw (Hp) 19,8 (27)
Starting

Electric

Fuel consumption l/h

6,3

Tank capacity l

11

"Dimensions L x W x H  mm"

2210 x 1040 x 980

Weight Kg

270
