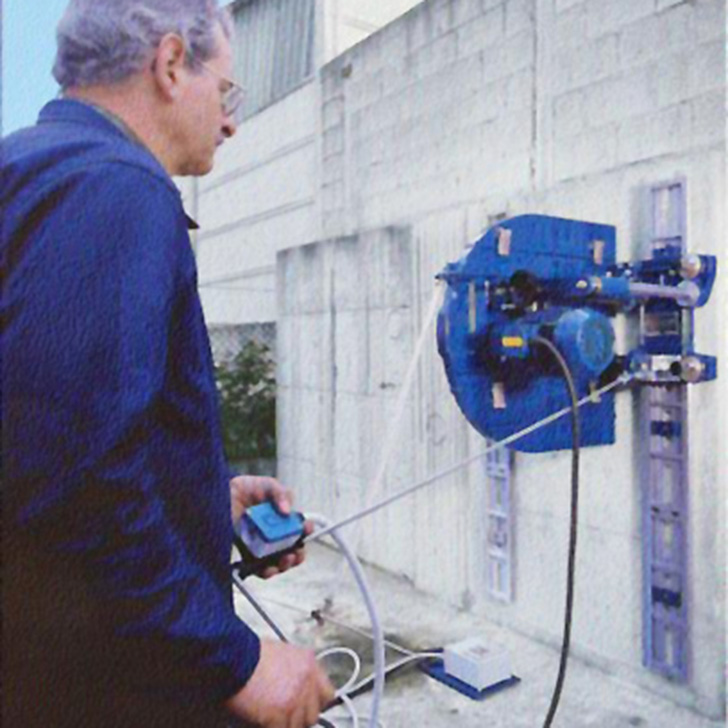

MPF 320

CODE: PTEMPF320 Category:

Separation of the machine into two parts for easy assembly : first part 28 kg, second part 36 kg; motor drive – disc with double-chain pinion, electric panel in separate metal box, thermal protection saves motor, low tension voltage coil, 24 volts control voltage. Diamond wire application is also possible.

Model

MPF320

Code

PTEMPF320

Max blade diameter mm

800 – 900

Max cutting depth mm.

330 – 380

Cutting forward

Manual

Cutting depth

By handwheel

Power kw (Hp) 5,9 (8,0)
Voltage Volts

400

Starting

Star – Triangle

Rails lenght mm

600
