SD28LX

CODE: SD28LX Categories: , ,

Plate compactor built with compaction characteristics identical to the series SB – SD, but designed specifically to minimize vibration hand – arm to the operator, the system in fact manages to reduce these vibrations up to about 50%. ACCESSORIES: water tank for working on asphalt or rubber mat for self-blocking.

Clear
Weight with extensions

74, 95

Plate width mm (*with widening plate)

400

Plate length mm

520

Centrifugal force kN

14,2

Frequency Hz

80

Working speed m/1'

20

Max penetration cm - inc

22 – 8,7

Transport wheel

included

Engine Hatz 1B20 diesel Kohler Lombardini 15LD225 diesel Kohler Lombardini 15LD225 diesel
Power kw (Hp) 3,4 (4,6) 3,5 (4,8) 4,0 (5,5)
Starting

Recoil

Fuel tank capacity l

2,5, 3

Stage V

No, YES

You may also like…

  • ROM 600 – Kohler Lombardini, Hatz – recoil starting – Kohler Lombardini diesel KD15 350

    Read more
  • RAN 6 Honda – petrol

    Read more

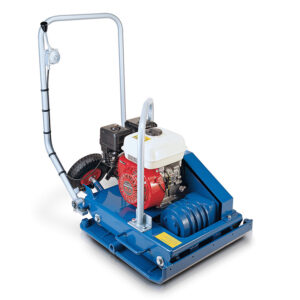

  • AC32 – Honda GX160 petrol
